SIDE COVERS

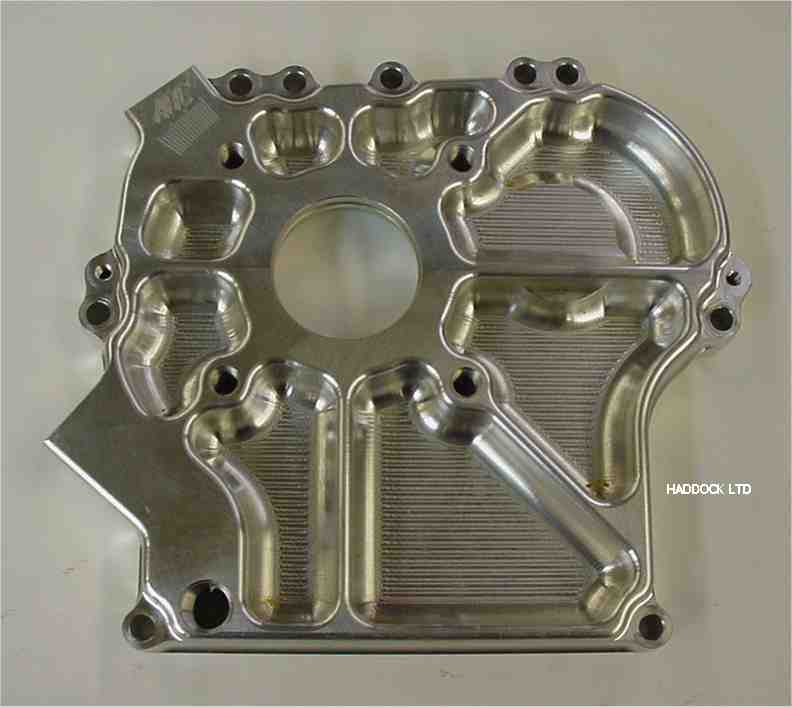

ARC side covers are fully machined from 6061-T6 billet aluminum.

 Flat internal surface for smooth oil flow and less turbulence.

 Available for Raptor and Blockzilla engines.

 Dual bearing models offer the maximum in crankshaft rigidity on the PTO side.

Features top fill port with "O"ringed cap.    Lower drain plug and fuel perimeter "O" ring seal.

Cam is supported by ball bearing

____________________________

# 6050     Raptor - single bearing  (supplied less 2.047" dia. bearing)

# 6052     Raptor - dual bearing (supplied with special bearings)

# 6042     Blockzilla - single bearing  (supplied less 2.047" dia. bearing)

# 6040     Blockzilla - dual bearing  (supplied with special bearings)

# RK-224-17     Ball bearing  --  2.047" OD  X  1.0" ID

# RK-224-17A     Ball bearing  -- 2.047" OD  X  .787" ID

# RK-556-39     Ball bearing  --  camshaft  -- 1/2" ID  X  1.125" OD
